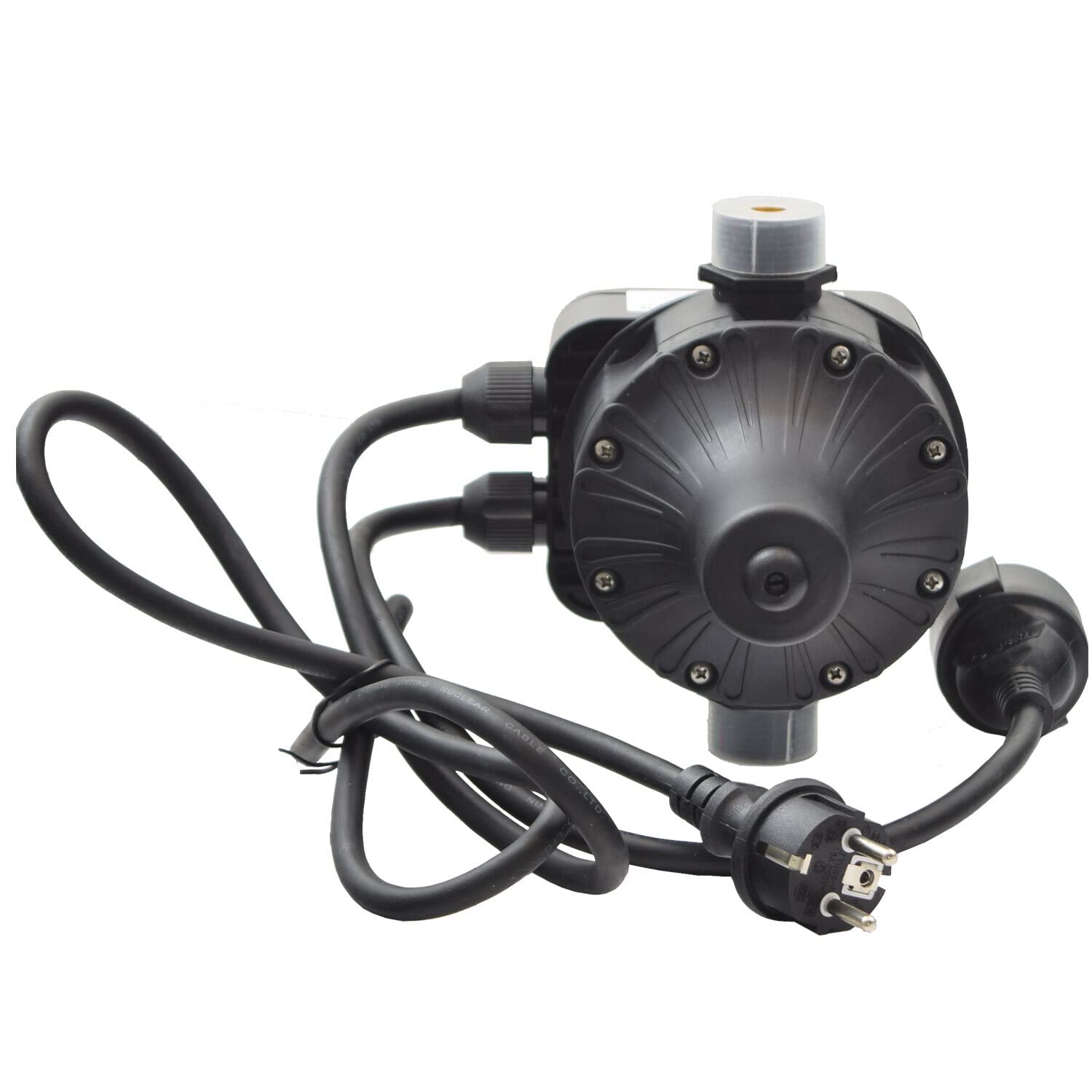

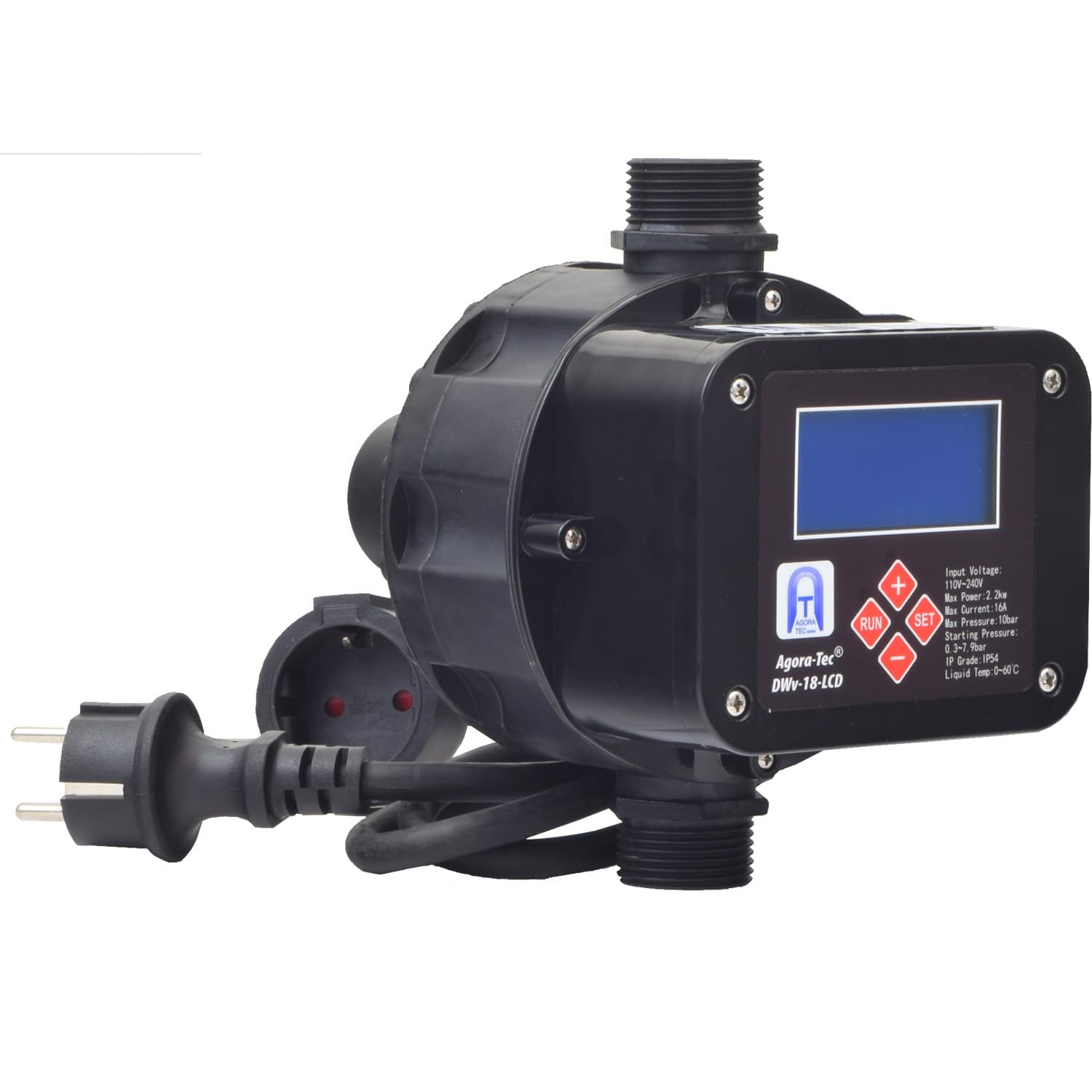

Agora-Tec® Pump control pressure switch flow monitor DWv-18-LCD wired (adjustable on/off pressure) with dry run protection, overpressure monitoring, leakage indication.

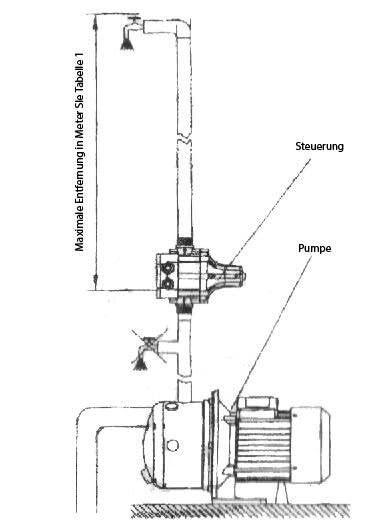

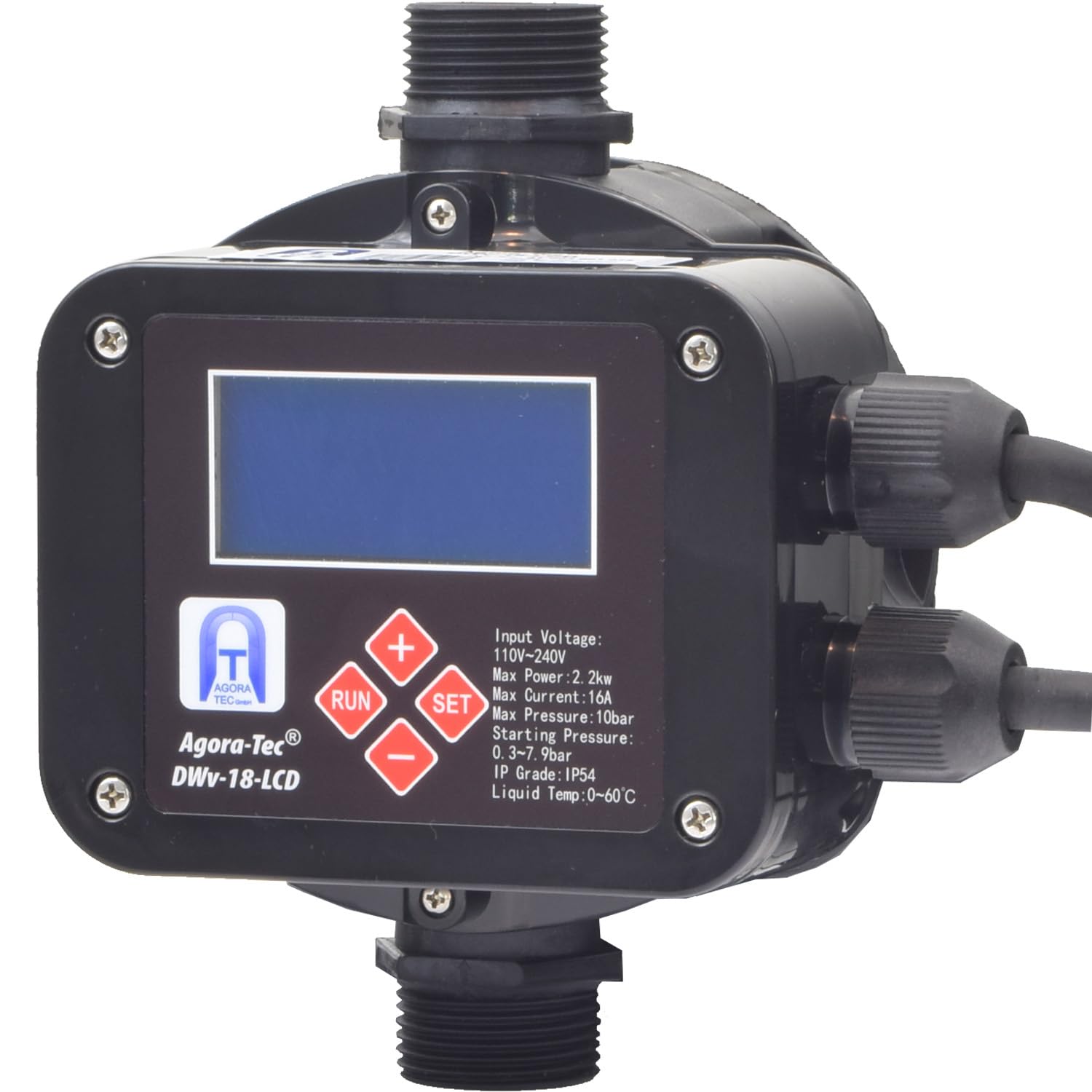

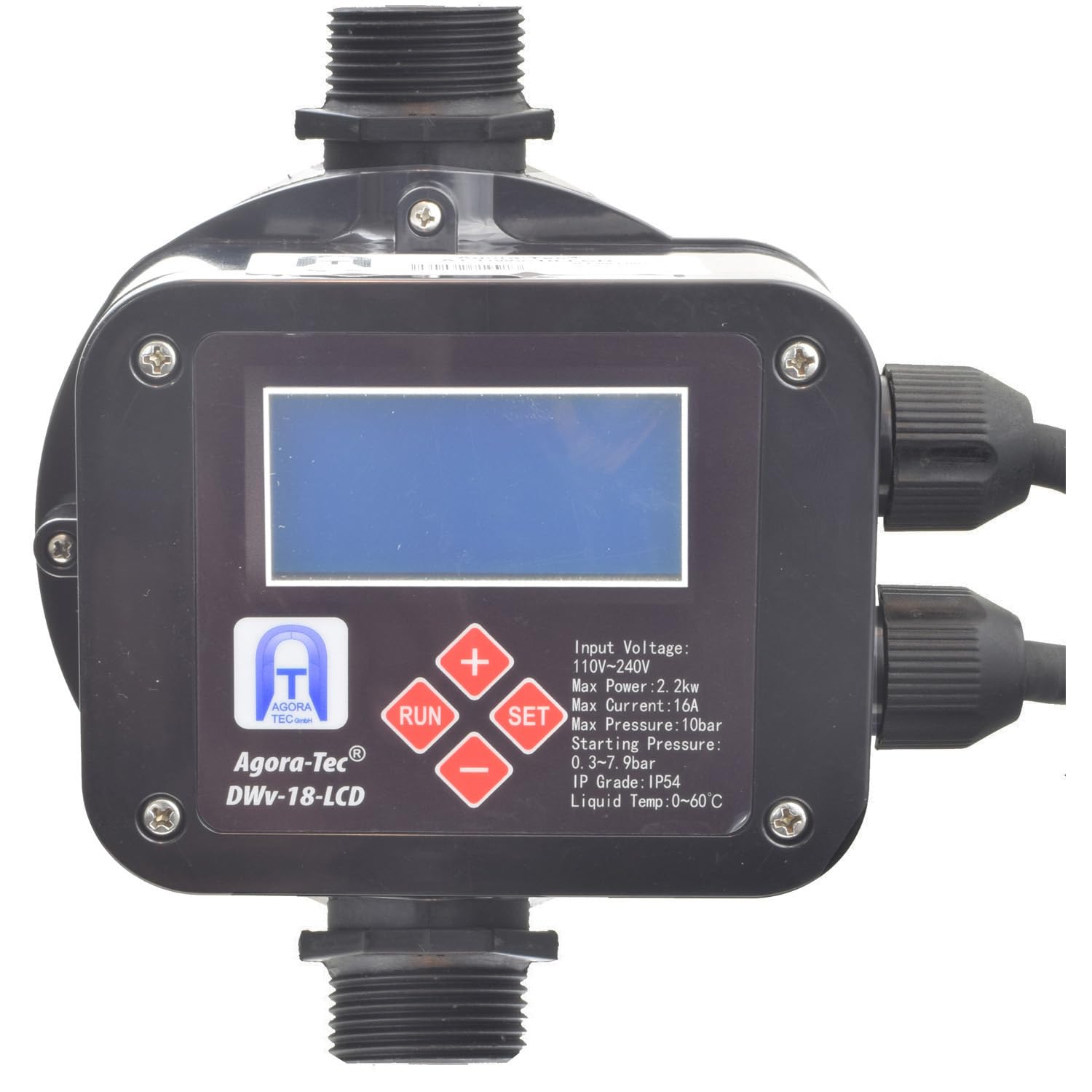

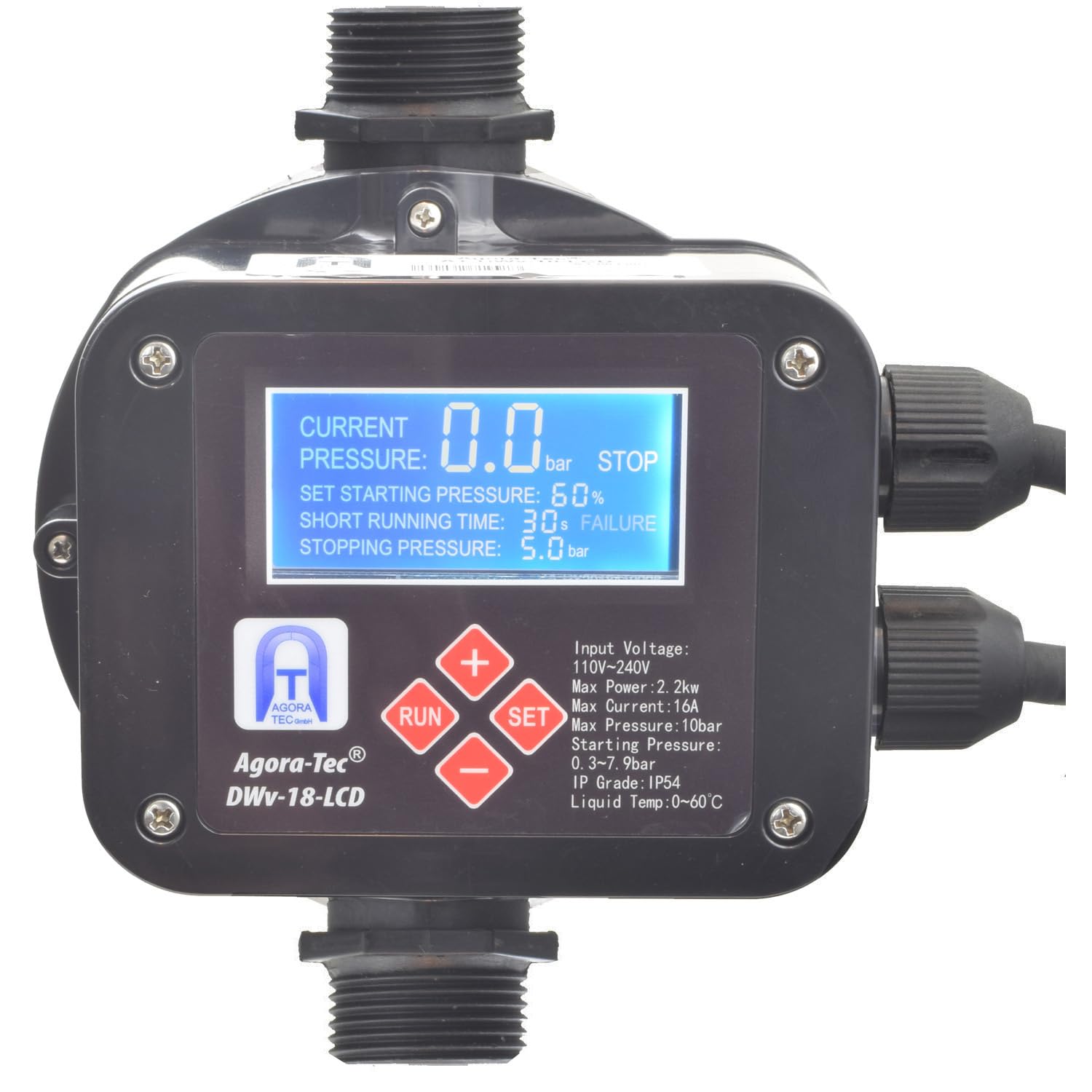

"To automatically control (turn on and off) a high-pressure pump with adjustable shutdown sensor technology (via flow or pressure measurement), manually adjustable turn-on and turn-off pressure. For pumps with more than 9.8 bar, a pressure reducer must be installed before the AT-DWv-18-LCD. Installation of the AT-DWv-18-LCD is only possible vertically (water flow only vertically). Pump control with real-time display of flow and rest pressure. Comfortable LCD display for power, water shortage, and pump status (RUN and STOP, water shortage). Includes dry run protection with an 'optional' activatable restart function (checks for water shortage every hour, automatically restarts the pump if water is available again), protection against overpressure of more than 10 bar (automatically switches off the pump). Leak monitoring (indicates suspected leakage in the consumer network), 24-hour forced start function to prevent the pump from seizing up, check valve and pressure sensor made of solid brass. Ideal for systems with low water consumption (min 1l/minute) such as toilets or irrigation systems. For constant low water consumption (e.g. animal drinking bowls, irrigation, etc.), we recommend installing an expansion vessel on the consumer side of the AT-DWv-18-LCD."
