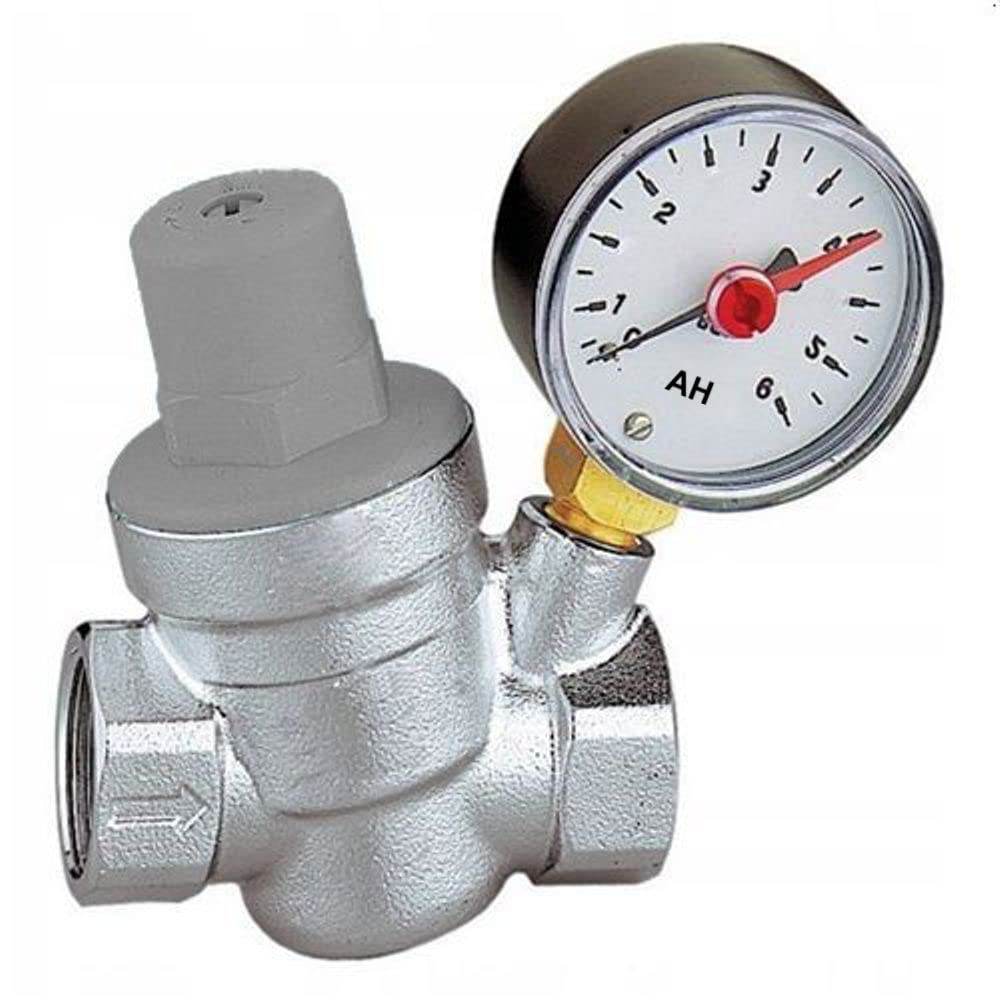

AQUA HEATING Water Pressure Reducer with Pressure Gauge 3/4 inch Water Pressure Regulator with Filter Screen Pressure Relief Valve Brass Membrane MBR

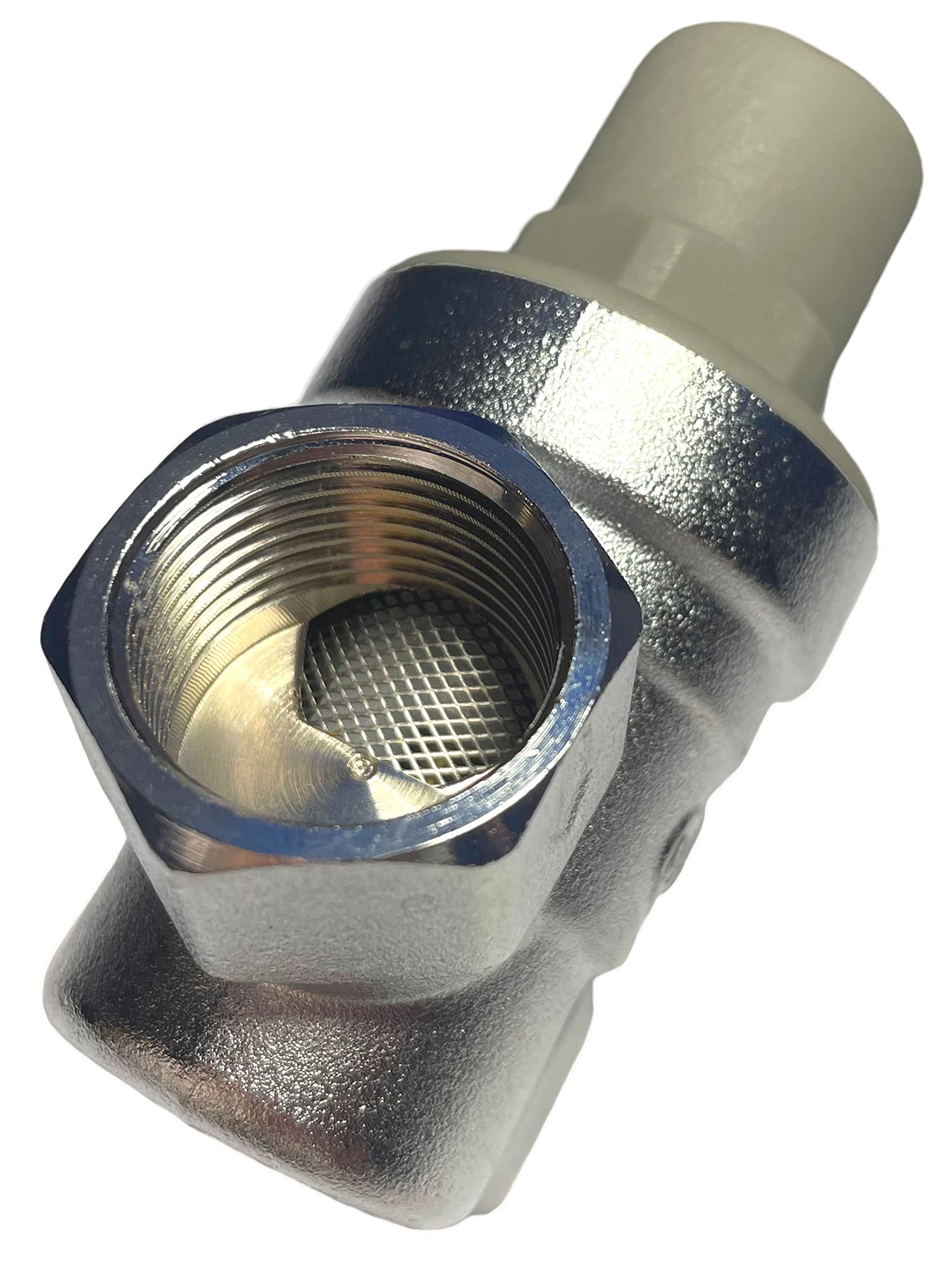

"3/4 Inch Water Pressure Regulator with Strainer Filter - Our water pressure regulator is made of BRASS and coated with NICKEL. It has a STAINLESS STEEL STRAINER FILTER. The water pressure regulator features 3/4" connections and a pressure gauge (0 ÷ 6 Bar), with a maximum inlet pressure of up to 16 Bar and a maximum medium temperature of 45°C. The output pressure range is 1 ÷ 6 Bar. Made of sturdy and durable BRASS - The water pressure regulator with pressure gauge is made of BRASS and is safe and durable. The pressure regulator features a STAINLESS STEEL STRAINER FILTER, allows for easy installation, and enables precise monitoring of the pressure value. Water entering the filter chamber flows through a filter sieve, trapping impurities on its surface. Valve operation - When opening the extraction points in the system, the spring force exceeds the opposite membrane force, the valve cone moves downward and allows water to flow. When the extraction points in the system are closed, the output pressure rises and pushes the membrane upwards. The valve cone is closed and prevents flow through the device, while maintaining the pressure at the set value. Technical data - Material (body): Brass, Medium: Water, Connections: 3/4", max. Inlet pressure: 16 bar, output pressure range: 1 ÷ 6 bar, max medium temperature: 45°C, Pressure gauge: 6 bar, Strainer filter: Stainless steel Included in the set - 1x Pressure Regulator, 1x Pressure Gauge"
