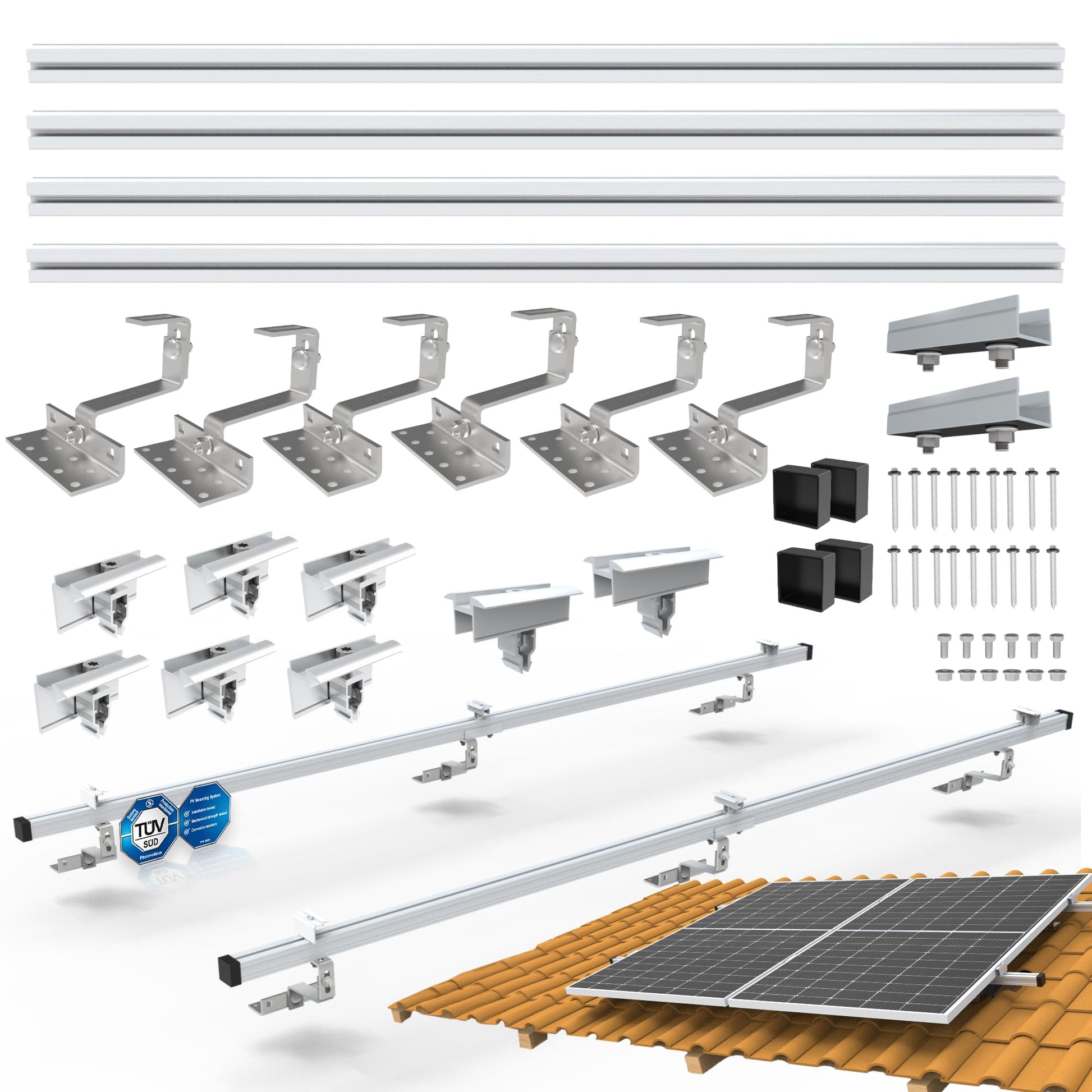

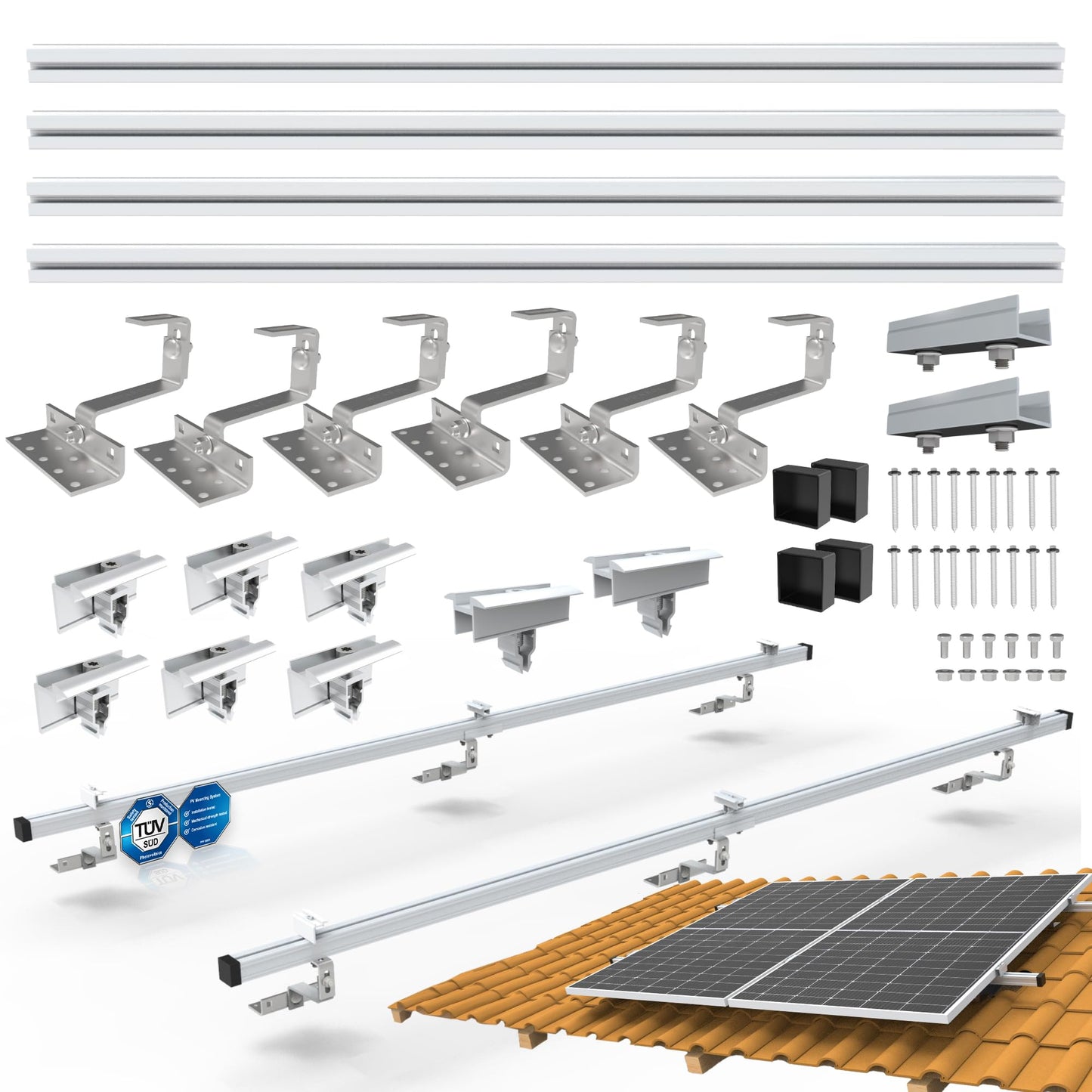

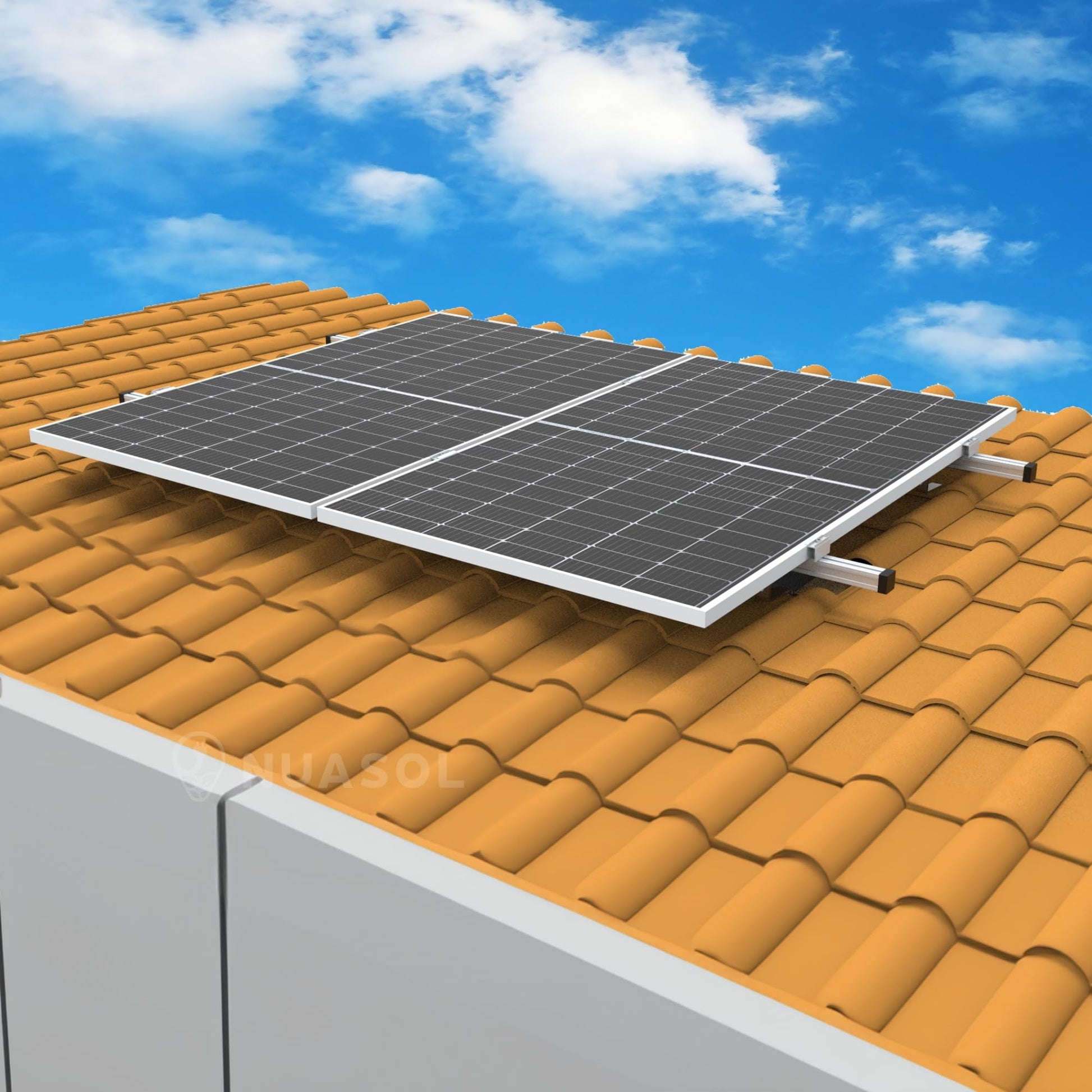

NuaSol PV Photovoltaic 2-set Mounting Kit Tile Roof Mount Rail Roof Hook - incl. Solar Aluminum Profile, End Caps, 35mm End Clamps, up to 115cm Width per Module and 35mm Height, Silver

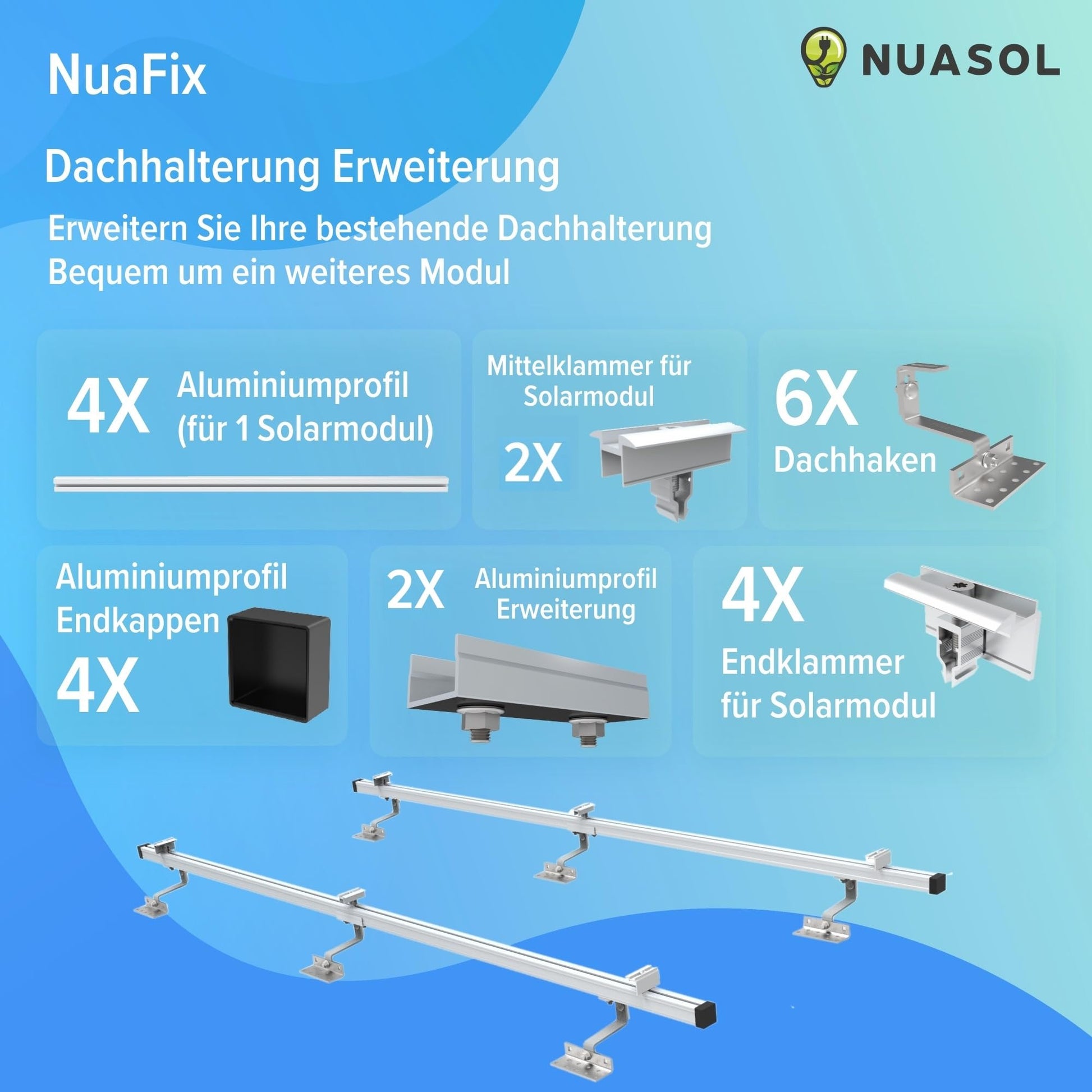

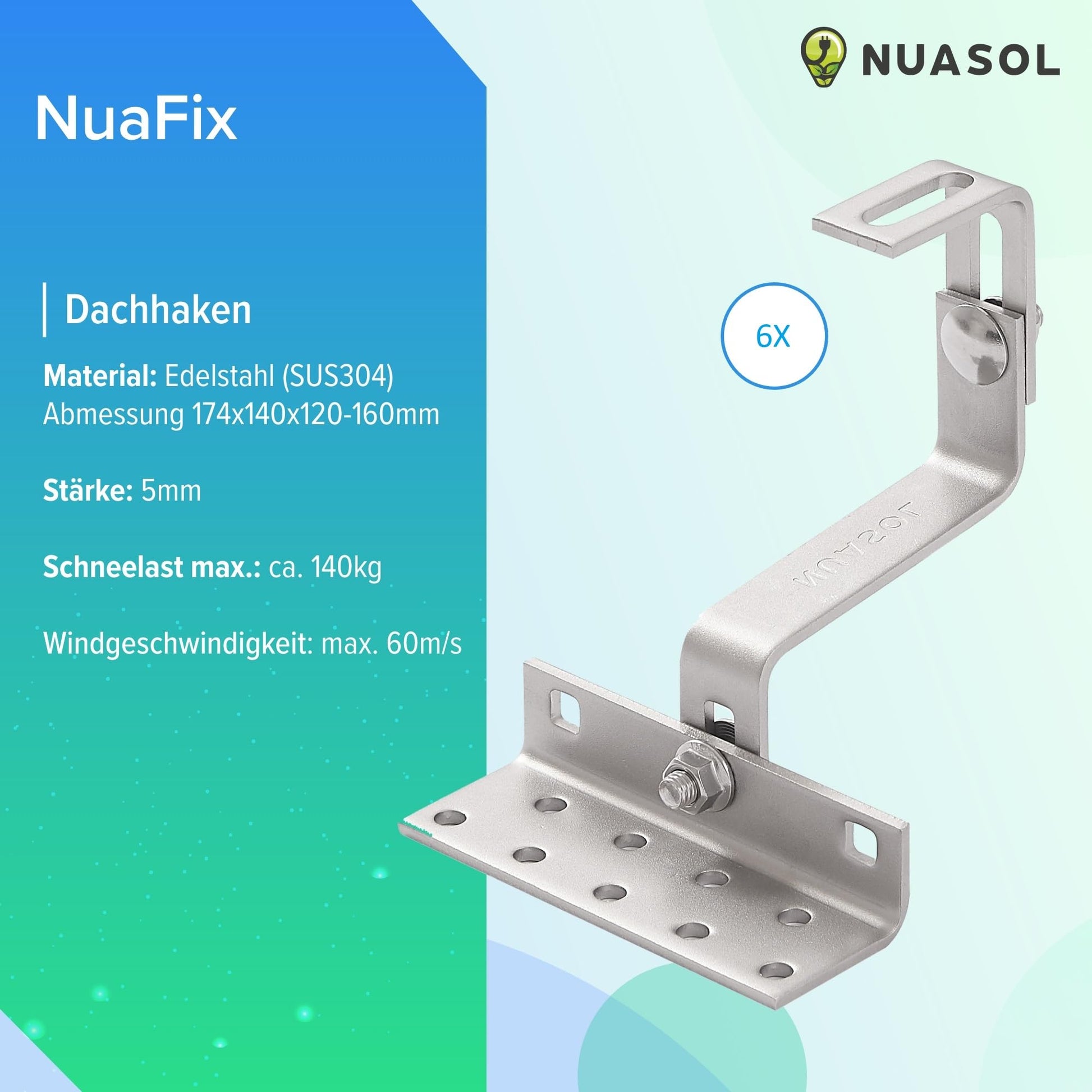

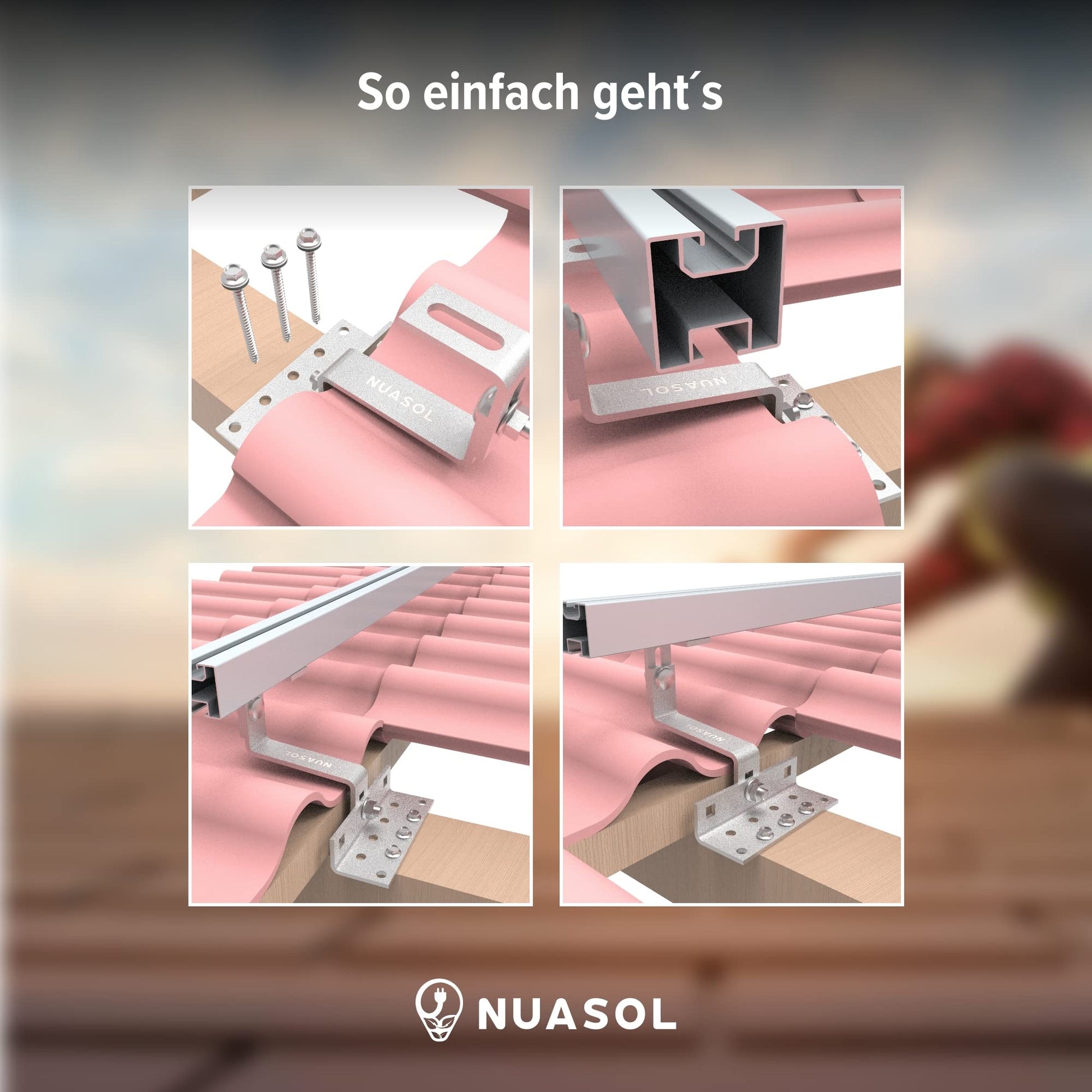

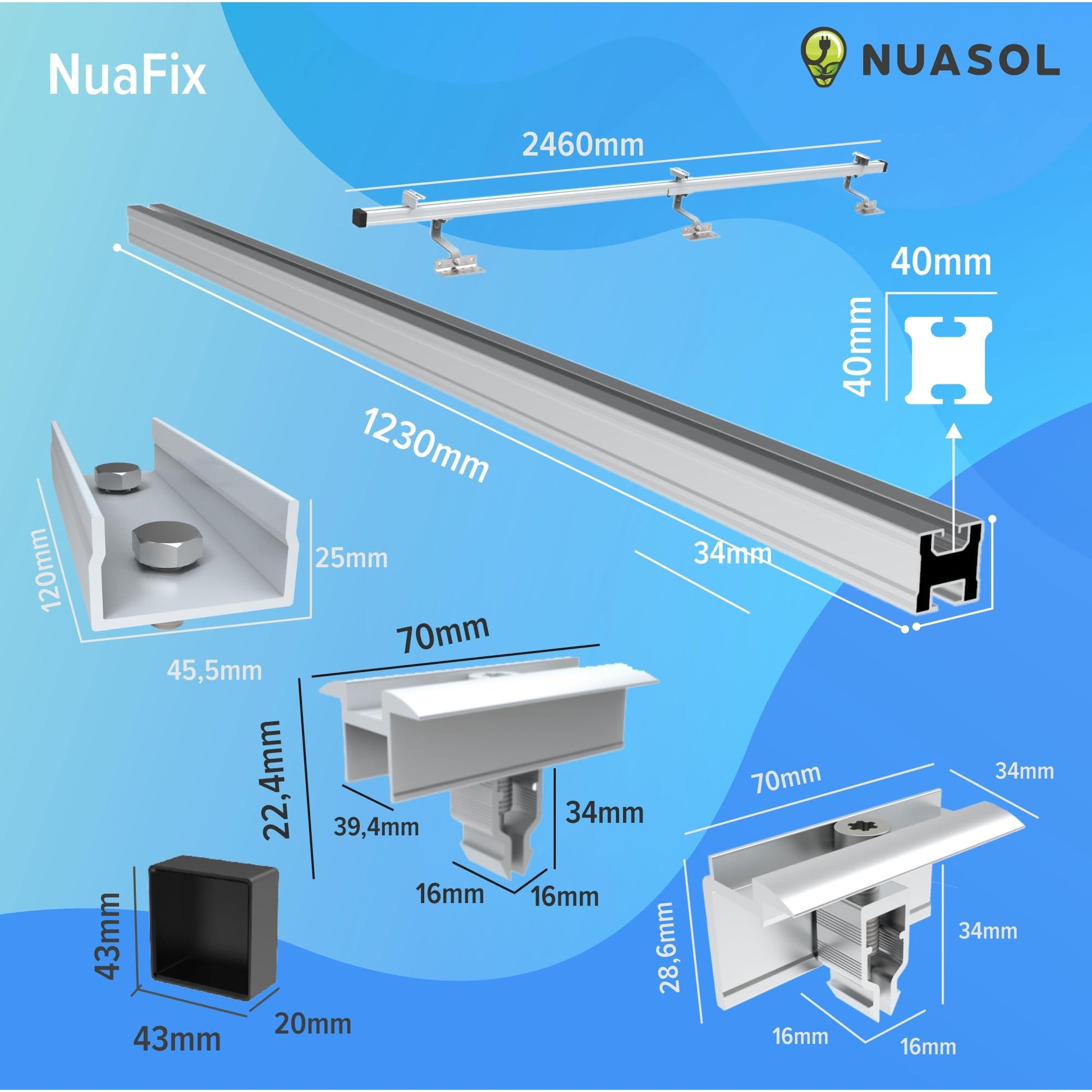

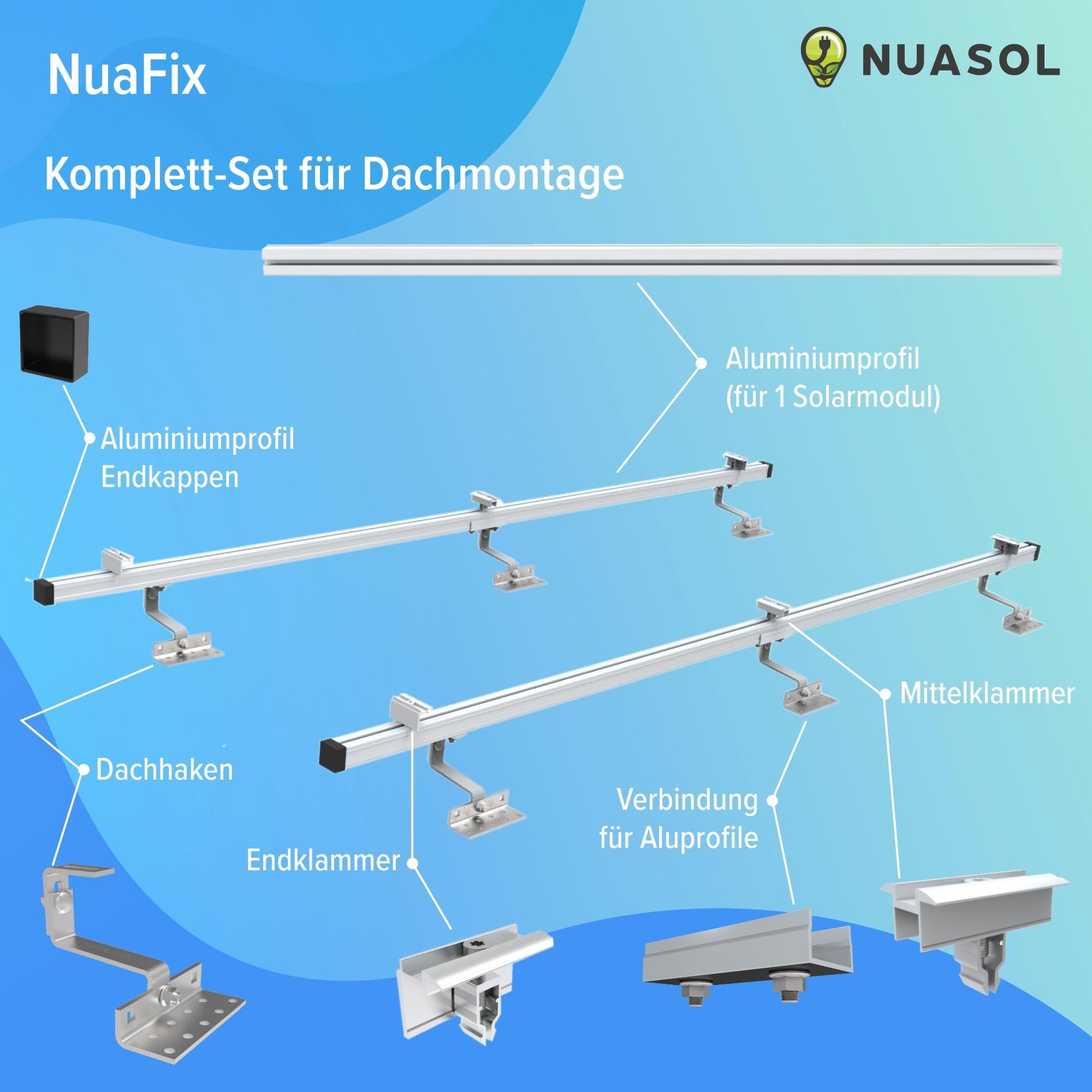

["Scope] Suitable for tile roofs. Mounting of 2 solar modules. ["Roof mounting] Attach your aluminum profile with the roof hooks and supplied wood screws directly under the tiles on your roof. ["Mounting of the solar panels] The solar module is attached to the aluminum profile using end clamps and center clamps. ["Details] Profile dimensions: 1230 x 40 x 40 mm | Connection dimensions: 120 x 45.5 x 25 mm | End clamp dimensions: 70 x 34 x 28.6 mm | End cap dimensions: 43 x 20 x 43 mm. ["Extension set] Expand your single-module profile with the Nuasol extension kit to add another module and save space on your roof."]
