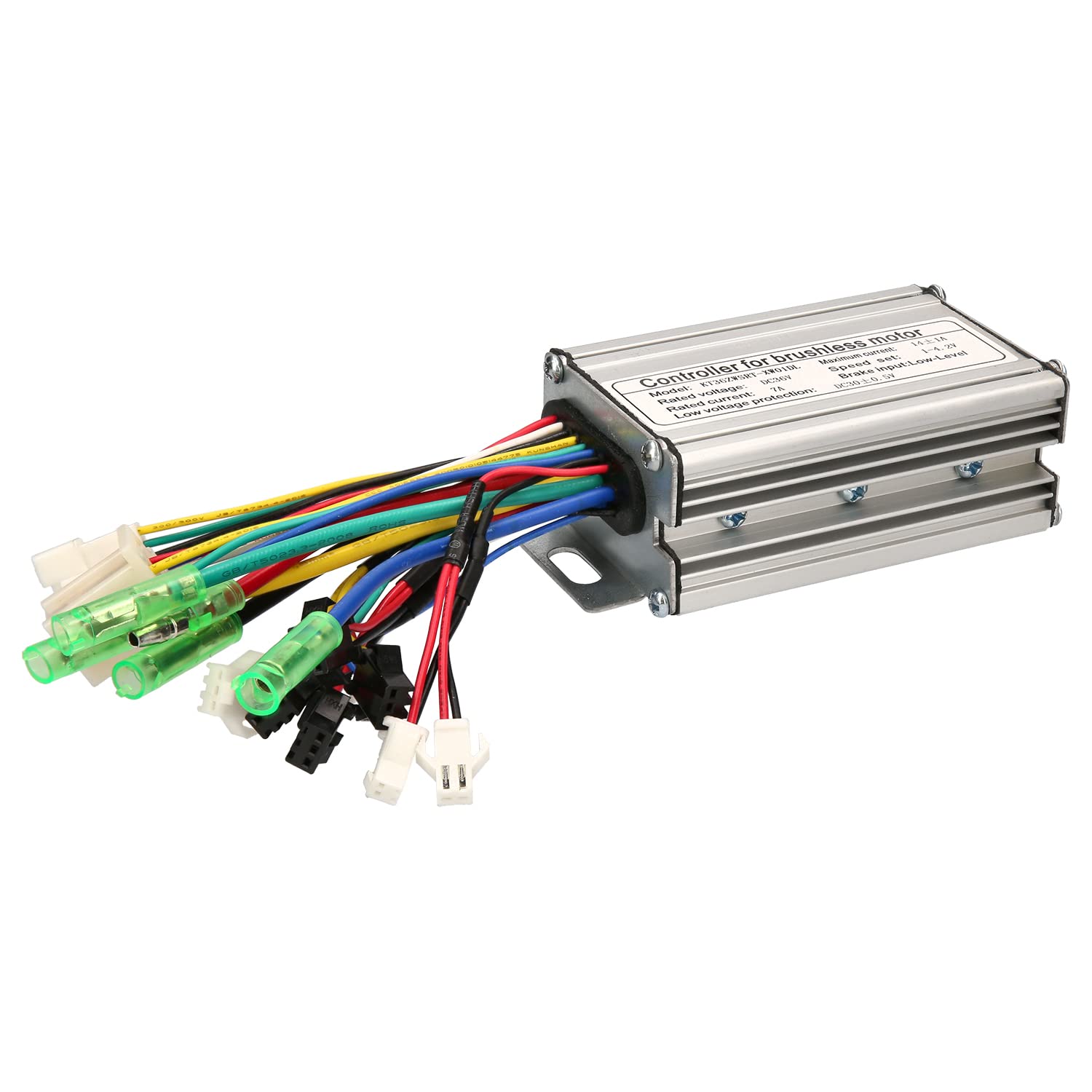

wind mile | Brushless Controller Professional, Torque Controller Trapzoid, Control Unit, 36V, 7A/250W, E-Bike, Electric Bicycle, Pedelec, Scooter

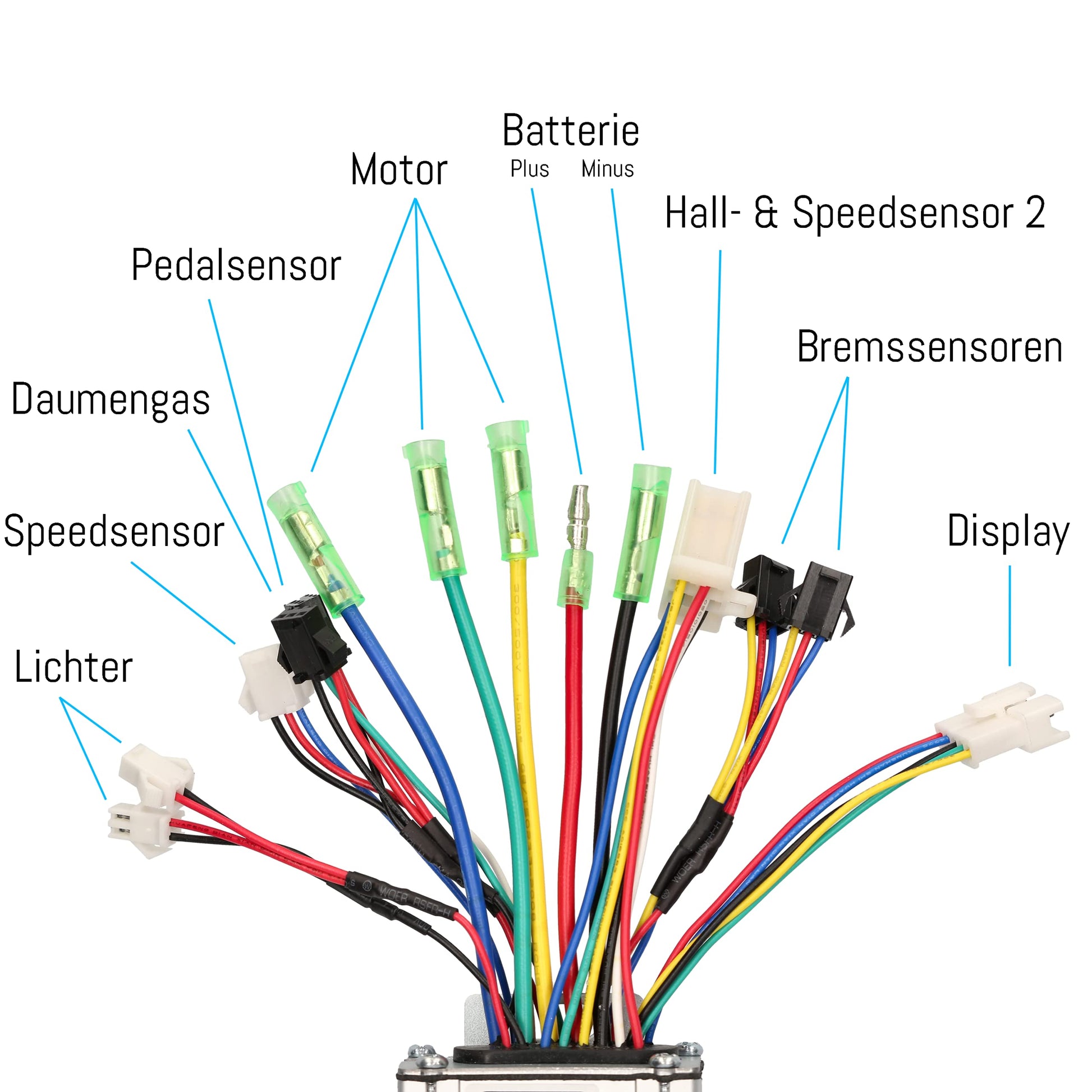

["Function: This device is a controller with dual-mode trapezoidal commutation for controlling all functions of your E-Bike. The controller powers devices such as the motor and lights on/off, processes information from PAS sensor, brake sensors, and hall sensor, and transmits it to the display. The controller can be perfectly mounted on the bike with the help of the controller box.","Power: The controller for 36V batteries has a rated power of 250W at 7A. The maximum current is 14A. The power at the light output is 3W (100 mA, voltage equals battery voltage). NOT compatible with 500W Bafang motors, using these motors with this 500W - KT controller is at your own risk and excludes all liability/warranty claims.","Compatibility: The controller is also compatible with all common windmeile motors with or without hall sensor. If your motor's hall sensor is defective, the controller will still work, just the start-up will be slightly less smooth. The controller must be used with a KT series display. Compatible displays can be found in our store. Dimensions are: 31x82x52 mm.","Connections: Our Torque Professional controller has two connections for lights with an output voltage of 36V, three connections for the motor, one connection for the thumb throttle, two connections for the battery (+ and -), one connection for the display, one connection for hall sensor and speed sensor, two connections for the brake, and one connection for PAS (pedal assist systems).","Accessories: For easy installation and best compatibility, we recommend suitable accessories such as our controller box for environmental protection and secure mounting of the controller on the bike, or the thumb throttle from windmeile, available either in the Amazon store or on our website with expert advice and instructions for your special E-Bike or Pedelec experience."]
